INNOVATIONS WINKLER
KEEPING UP WITH MODERN BUILDING
ONE
One is a 100% Solids Liquid Applied waterproofing for roof Membrane. FEATURES Ready to use Long Pot Life VOC Zero No Primer Needed UV Rays Water stagnation Applicable on Metal Applicable in wet condition Applicable in extreme conditions (0ºC or 32ºF and rising) DESCRIPTION ONE is a single component colored liquid waterproofing for roof membrane, specifically developed
- Application
It can be applied with:
Brush Flat trowel Short haired roller Airless spray gunIt can be used on:
Flat roofs Metal roofs recover Balconies or decks Areas with moisture damages, including those with foot traffic Concrete Green concrete (cured at least 7 days at minimum 15ºC) Concrete blocks Masonry Fibered-cement boards Ceramic tiled surfaces Asphalt shingles BUR cap sheets or modified bituminous membranes (oxidized minimum 90 days if smooth) Plywood Wood Metal Clean all substrate surfaces thoroughly to eliminate dirt, dust, and loose materials, any form of oil or grease and foreign or bonding-proof matters. There is no need for the substrate surface to be dry, but ponding water shall be removed prior to the application of ONE. - Consumption
Without WINTECHNO MAT
1,5 kg/m² collective consumption, corresponding to final dry thickness of 1 mmWith WINTECHNO MAT reinforcement
1,7 kg/m2 collective consumption above and below WINTECHNO MAT.PACKAGING
1 kg pail – 1 box = 15 pcs 5 - 20 Kg pailCOLORS
White- Grey- Red- BrickSTORAGE

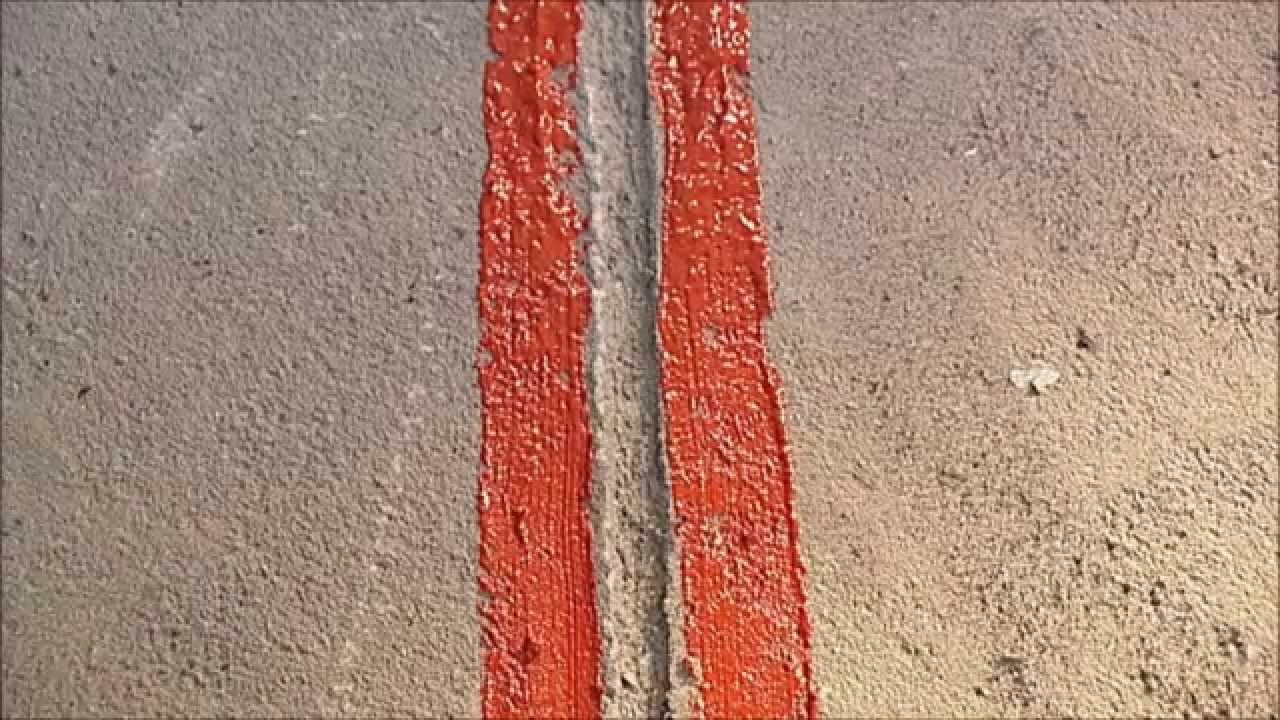

The product in its undamaged packaging can be store for 12 months. No frost-proof. Store at temperatures between +5°C e +35°C. - Useful Boards DO NOT dilute Not frost-proof Apply BC SEAL BAND (Self-Adhesive Butyl Tape) at wall to floor type corners, balcony terminations, around skylights or other alike penetrations. Use BC SEAL PAD (Self-Adhesive Butyl Square Pad) around tubes, vent pipes, drains, etc. In case the substrate is damp, first apply a skim coat of ONE, prior to the application of any butyl accessory. After the product dries, resume the normal application of the butyl accessories. Control cuts, contraction and/or most structural joints will be sealed, using the waterproofing elastic band WINJOINT BAND as follow: Ensure the surface to be treated is clean. Over the clean substrate apply ONE in two stripes 5 cm wide along each side of the joint, without covering the joint line. Immediately place WINJOINT BAND over the wet stripes of ONE (the central part of the band will cover the joint line and the lateral wings of the band will be embedded onto the wet stripes of ONE. After the product dries, cover the lateral wings of the WINJOINT BAND with a skim film of ONE.
- Technical data sheet
Wingum Plus H2O REFLEX
Water-based waterproofing agent with top quality modified resins. FEATURES Ready to use Waterproofing Certificate Resistant to water stagnation Resistant to UV rays Reflective Low VOC No Needed Primer DESCRIPTION Is a white elastomeric liquid and waterproofing membrane with special additives and charges that gives to the product high solar reflection and emissivity in infrared. It offers
- Application It can be applied over prepped dry surfaces with: Roll Brush Large paintbrush Airless spray gun
- Consumption Average collective consumption when applied in two coats with Wintechno Mat (Field Polyester Reinforcement Mat) is:
3.3 Gal. per 100 Sq. Ft.
APPROXIMATE COVERAGE PER PAIL:
120 - 135 SF (11 – 12.5 m²) in two coats with Wintechno Mat interposedWEIGHT:
44 Lbs. (20 kg)PACKAGING:
3.9 gallons per pail - Useful Boards To apply the product: Clean and dry the surface. In the edges of the surface to be treated apply the waterproof BC Seal Band Seal drains with BC Seal PAD Any joints should be treated with Winjoint Band To maintain reflection characteristics use Win Clean as a protective applied at least 24 hours after the second hand of H2o Reflex. For application on metal surfaces, a 300g hand of Wingum Plus H2O is recommended as a corrosion inhibitor
BC SEAL PAD
FEATURES Ready to use Self Adhesive Waterproof Paintable DESCRIPTION Self adhesive butyl square pad, with easy-peel siliconized release liner and non-woven polyester backing. BC Seal Pad has excellent adhesion to concrete, plaster boards, (plastic, bituminous membranes, EPDM, metal). It is fully compatible with all cured liquid applied WINKLER materials. WHERE TO APPLY Ventilation pipes Drains
- Application Use BC Seal Pad for sealing around roof penetrations such as drain, ventilation pipes, other roof penetrations or around plumbing pipes and drains. Remove the protection than put the band on the surface avoiding the formation of air bubbles between the butyl and the support. Do not use to seal cracks or pinholes of the walls of pipes with running water. For joints, superimpose the products of at least 5 cm.
- Consumption Standard length and width: 320 mm
- Useful Boards Before applying the product, it is recommended to repair any surface irregularities, paste any detached tiles, and check hidden wet in order to prevent the formation of vapor pressure. Cover the product within 18h. Avoid using in imminence of rain or on wet surfaces. Working temperature range for applied product: -22F and 176F (-30°C and +90°C). The product has 12 months stability from the production date if properly packed and not opened. Store in a ventilated room sheltered from dampness at temperature between + 5° C and + 35 °C. Application temperatures: 41F and 95F (+5°C and +35°C). Pad dimensions: 1219/32 inches x 1219/32 inches (32 cm x 32 cm).
- Technical data sheet
BC SEAL BAND
Peel & stick self adhesive band based on butyl mastic with non-woven polyester fabric backing. FEATURES Self-Adhesive Butyl Tape Ready to use Waterproof Paintable DESCRIPTION Self-adhesive butyl tape with non-woven polyester fabric backing and split release film for easy application. It is intended to be used for sealing and protecting the floor to wall corners,
- Application Take off the protector, put the band on the support avoiding the formation of bubbles between the butyl and the support. Avoid the formation of air pockets between the butyl surface of the band and the support. For joints overlap the product minimum 2 inches (5 cm). The non-woven support can be painted but, given the extreme flexibility of butyl mastic, the painted layer, covering the non-woven may present light cracks. Please ensure that any material covering the backside of the band (adhesives, coatings, membranes), are compatible with the non-woven mat and with the butyl mastic.
- Consumption One roll of 32.8 ft. (10m) individually packed in a box.
- Useful Boards Do not use solvent-based product in the close proximity or in direct contact with BC SEAL BAND. Clean all support surfaces thoroughly in order to eliminate dirt, dust, and loose materials, any form of oil or grease and foreign or bonding-proof matters. Apply only on dry surfaces. Applying the new roll cover the previous one with 5cm.
PACKAGING
32.8 Ft. x 3.15 Inches (10 m x 80 mm) roll individually boxed.STORAGE
When kept in its sealed, undamaged package in a shaded well-aired covered place at temperatures up to 86F (+30°C) product can be stored for 12 months. Storing at higher temperatures could cause difficulties in the application of the product. - Technical data sheet
WINGUM PRO
Water-based thixotropic bituminous emulsion waterproofing membrane. Highly elastic and resistant to ponding water, it provides an excellent resistance to ageing and to extreme temperatures. FEATURES Ready to use Water stagnation Long Pot Life Waterbased VOC Zero No Primer Needed DESCRIPTION The ideal solution for horizontal and vertical surfaces in applications over aged bituminous membranes, concrete, masonry,
- Application Apply over prepped dry surfaces with roll, brush, large paintbrush.
- Consumption
Average consumption:
2.32 – 3.53 Gal / 100 SF (1 – 1.5 Kg / m²) for two coatsApproximate coverage per pail:
141 - 215 SF (13 - 20 m²) in two coatsVolume:
5 Gallons - Useful Boards Apply at ambient and substrate temperatures between 41F and 95F (+5°C and +35°C). It is not UV protected. If applied on surfaces exposed to sunlight protect the product with one of WINKLER protective coatings (e.g. ECOSILVERALL, ONE COAT).
PACKAGING
1.25, 2.5 or 5 Gal. pails. Net weight 11.22 or 44 Lbs. (5, 10 or 20 Kg).STORAGE
When kept in its sealed, undamaged package in a shaded covered place at temperatures between 41F and 95F (+5°C and +35°C) product can be stored for 24 months. - Technical data sheet
WINGUM PLUS H2O
Colored ready to use fibered water-based elastomeric waterproofing liquid membrane that offers extraordinary resistance to water stagnation, aging and UV rays. FEATURES Ready to use Fiberized Long Pot Life Waterbased VOC Zero No Primer Needed UV Rays Water stagnation Applicable on Metal DESCRIPTION Installed as a (roofing membrane) system, can be used to waterproof new
- Application It can be applied over prepped dry surfaces with: Roll Brush Large paintbrush Airless spray gun
- Consumption Average collective consumption when applied in two coats with Wintechno Mat (Field Polyester Reinforcement Mat) is:3.3 Gal. per 100 Sq. Ft. APPROXIMATE COVERAGE PER PAIL120 - 135 SF (11 – 12.5 m²) in two coats with Wintechno Mat interposedVOLUME: 3.9 GallonsWEIGHT: 44 Lbs. (20 kg).
- Useful Boards
The application rate will vary (especially for the first coat) depending upon the substrate profile/porosity, weather, method of application, etc.
Apply and cure at ambient and substrate temperatures between 41F and 104F (+5°C and +40°C). To help maintain a clean surface and reflexivity of Wingum Plus H2O, WINKLER suggests the use of Winclean.
COLORS
Standard colors: white and grey. Special colors: red, green, custom colors.
STORAGE
When kept in its sealed, undamaged package in a shaded covered place at temperatures between 41F and 104F (+5°C and +40°C) product can be stored for 18 months.
- Technical data sheet
- Certifications
- Declaration of performance WINGUM PLUS H20 001
WINGRIP BITUMINOSO
Waterproofing under tile Liquid Membrane for bathrooms, balconies, terraces, shower pans and more. FEATURES Ready to use One coat only Fiberized (no net is required) Act as a Bonding Agent (primer is not required) Long Pot Life Waterbased Effective cost VOC Zero DESCRIPTION Bitumious polymeric waterproofing and adhesion-promoting liquid applied membrane with special aggregates in
- Application You can apply over prepped dry surfaces with: a brush a roller large brush and airless spray gun This Product need just One Coat
- Consumption
AVERAGE CONSUMPTION
1 – 2.02 Gal /100 SF (0.5 - 1 Kg / m2) With horizontal application for two coats depending on the porosity of the substrate. With vertical application is require 20% less material than horizontal applications.APPROXIMATE COVERAGE PER PAIL
214 - 433 SF (20 – 40.2 m2) horizontal applications in two coats VOLUME: 4.33 Gallons PACKAGING: 4.3 gallons per pail WEIGHT: 44 Lbs. (20 kg) - Useful Boards The application rate may vary depending on:
Substrate profile / porosity, weather, method of application, etc.
Apply at ambient and substrate temperatures between 41F and 104F (+5°C and +35°C).
STORAGE
Product can be stored for 12 months When kept in its sealed, undamaged package in a shaded covered place at temperatures between 41F and 95F (+5°C and +40°C) - Technical data sheet
- Certifications
- Declaration of performance WINGRIP BITUMINOSO
