Winkler’s innovative resin-based systems were selected for the refurbishment of the flooring in Hangar 3 at Linate Prime Airport.
Thanks to the support of Winkler’s Technical Office, the project benefited from cutting-edge solutions and constant supervision during the works.
Project Overview: Hangar 3 Flooring Refurbishment
- Client: SEA Prime S.p.A.
- Project: Refurbishment of Hangar 3 at Linate Prime
- Area: 1,720 square meters
- Purpose: Aircraft hangar for business jets like Pilatus PC-24, Embraer Legacy 450, and Embraer Phenom 300.
The intervention required the renovation of the flooring to ensure durability, uniform load distribution, and resistance to sector-specific contaminants.

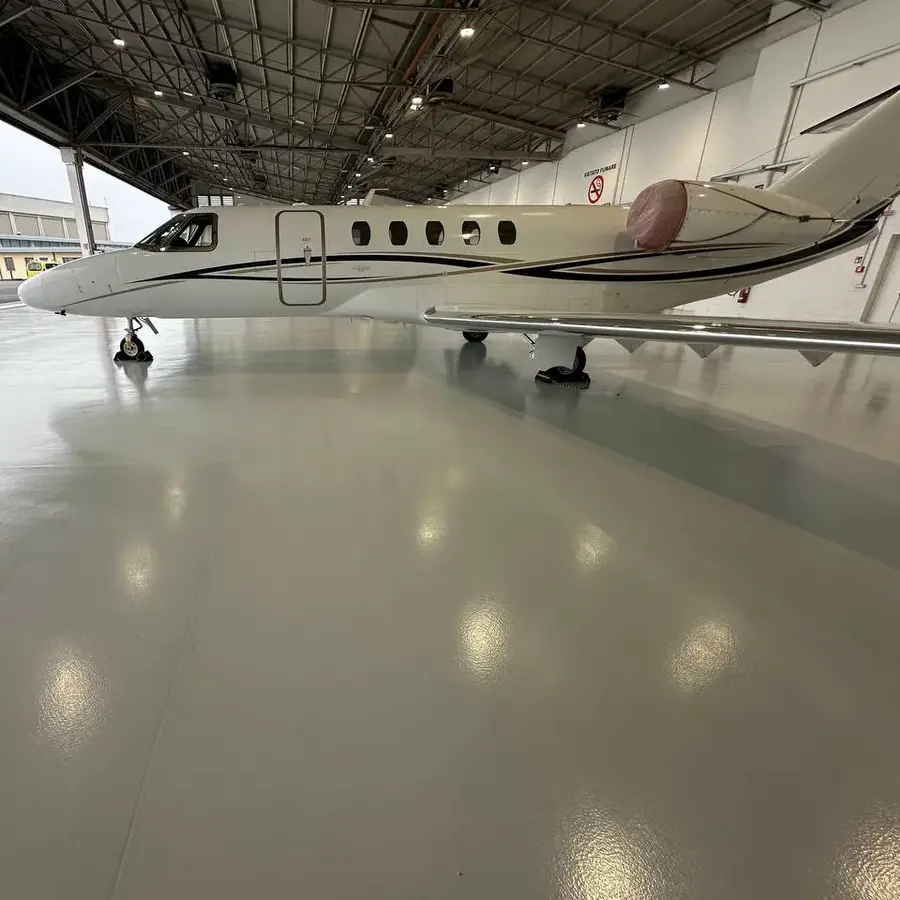

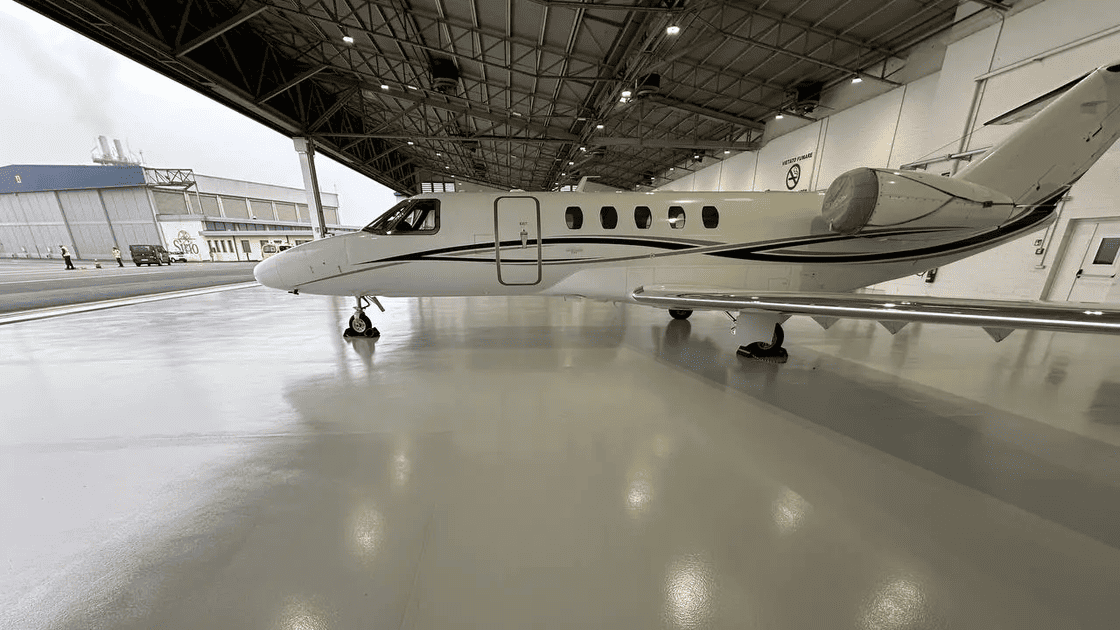

Refurbishment of Hangar No. 3 at Linate Prime
Why Were Winkler’s Resin Systems Chosen?
In July, Winkler’s technical team was invited by the Technical Office of this important Lombard business aviation hub to present their products. Following a detailed analysis of technical data sheets, the main evaluation criteria included:
- Fire reaction class
- Resin’s elastic modulus
- Maturation times
- Resistance to contamination from aviation oil, such as SkyDrol.
Winkler’s products stood out for their application speed, solvent-free composition, and high-level environmental certifications.
Rigorous Testing and Certifications
Physical samples of different sizes and colors were subjected to intensive tests in a dedicated testing area. The samples passed the evaluations brilliantly, demonstrating:
- Resistance to heavy-duty loads
- Chemical resistance to oils, solvents, and hydraulic fluids
- Environmental safety, thanks to a non-toxic, odorless composition

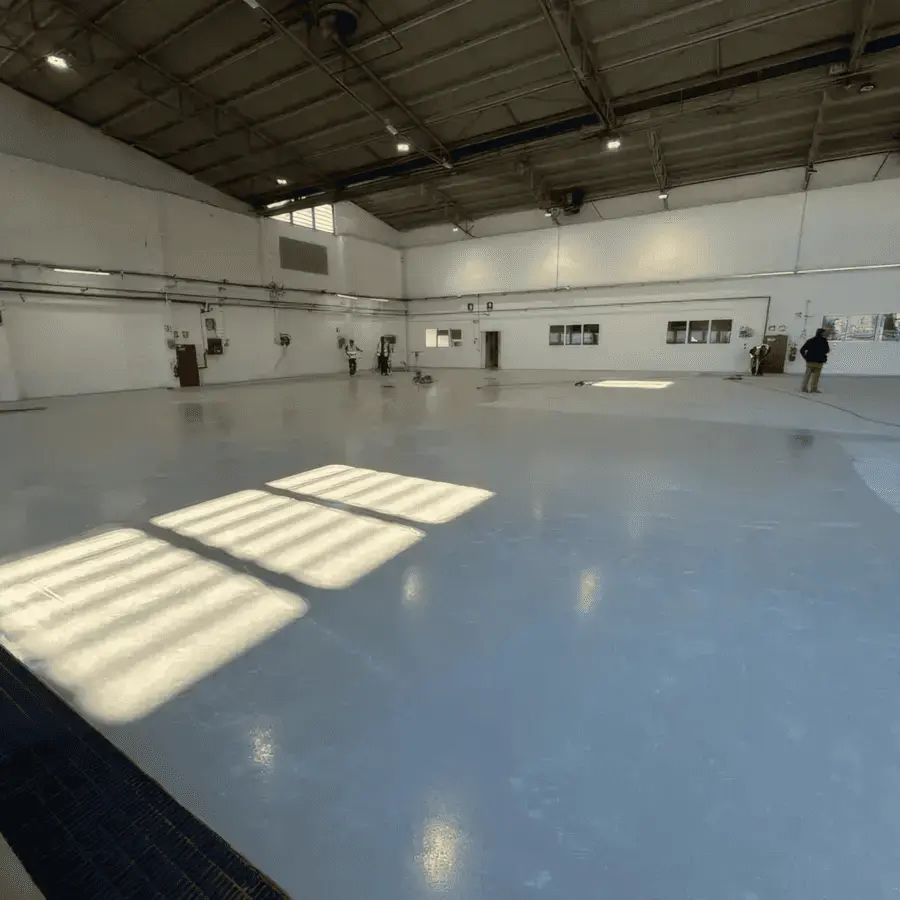

First Coat – Saturation Dusting
Based on these results, Unibar Formula was selected—a multifunctional, two-component resin that consolidates and waterproofs, ideal for load-bearing layers exposed to heavy traffic.

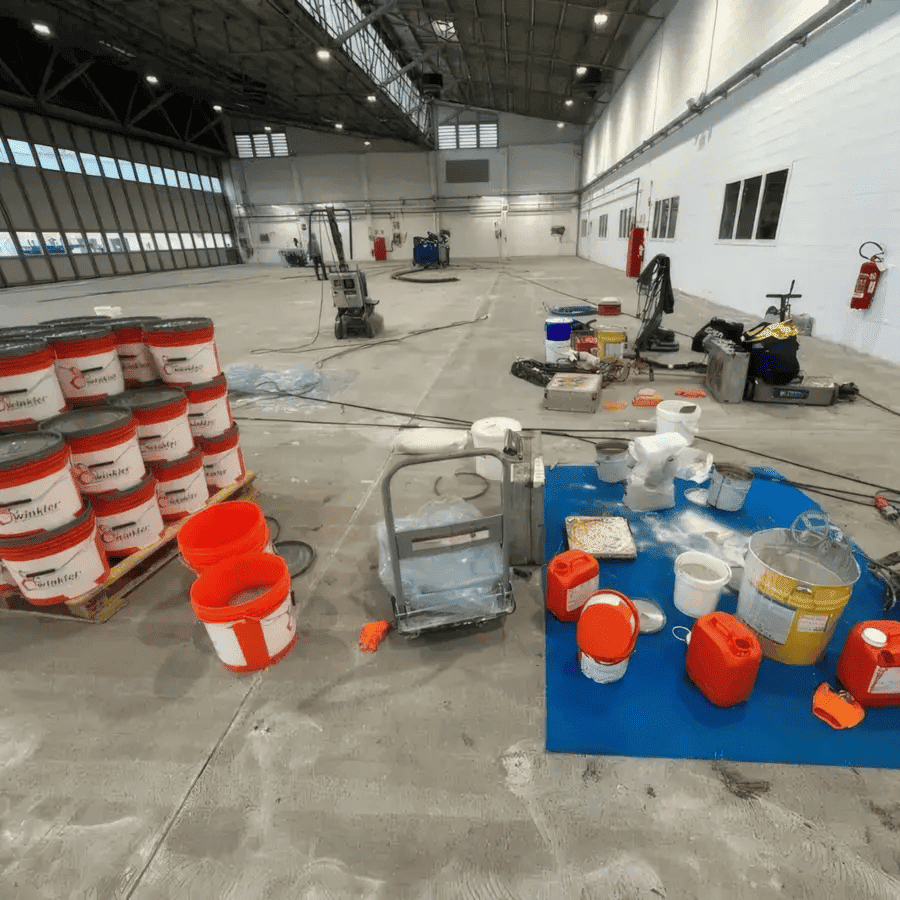

Application Process: Key Steps
The works, carried out by Even Srl under Winkler’s technical supervision, followed these main phases:
- Surface Preparation:
- Cross-grain shot blasting to level the base
- Grinding and sealing of expansion joints
- Primer Application:
- Substrate priming with quartz dusting to enhance resin adhesion
- Layering with Unibar Formula:
- First leveling coat with special fillers to strengthen the mix
- Second leveling coat with more resin, pre-colored in RAL 7035 for optimal coverage
- Finishing with Winpaint:
- Application of Winkler Winpaint, a two-component polyurethane resin, water-based and designed for trafficable surfaces
- Addition of an anti-acid additive to ensure resistance to potential oil and hydrocarbon spills
The project concluded with the final testing and issuance of legally required Performance Declarations (DOPs).
PLAY VIDEO
Advantages of Unibar Formula and Winpaint
- Unibar Formula: Solution for Heavy Loads
- Perfect for load-bearing layers exposed to heavy-duty traffic
- Solvent-free and odorless formula, ideal for sensitive environments
- Winpaint: Long-Lasting Protection for Flooring
- Optimal for workshops, warehouses, and logistics centers
- Resistant to wear, abrasion, and chemicals
Collaboration and Regulatory Compliance
Thanks to the collaboration with Winkler’s Technical Office, the project adhered to strict airport safety regulations, ensuring an odor- and dust-free environment.
Conclusion: Superior Performance for Aviation Flooring
The refurbishment of Hangar 3 at Linate Prime demonstrates the effectiveness of Winkler’s resin solutions for aviation and industrial applications. With Unibar Formula and Winpaint, SEA Prime now has robust, durable flooring designed to meet the sector’s most complex demands.
Looking for advanced solutions for your flooring? Discover Winkler products today!
Unibar Formula – Color Paste Added
WINKLERSAFE: Innovative and Sustainable Waterproofing Solutions
All Winkler products are water-based or 100% composed of active ingredients, with no solvent use. This approach underscores the brand’s mission to develop advanced technological solutions with low environmental impact, prioritizing people’s health and environmental protection.
WINKLERSAFE: Quality and Sustainability Guaranteed
The WINKLERSAFE program offers innovative, sustainable responses with high-performance waterproofing products and technologies. Thanks to advanced research, Winkler guarantees:
- Superior performance for every application
- Certified reliability, tested daily
- Environmental safety, eliminating solvents and toxic materials
Why Choose Winkler for Your Needs?
- Solvent-free: Completely water-based or active ingredient formulations
- Guaranteed sustainability: A responsible choice for the environment
- Performance without compromise: Ideal for construction and industrial projects
Explore WinklerSafe solutions and elevate your project to a new level of sustainability and reliability.
